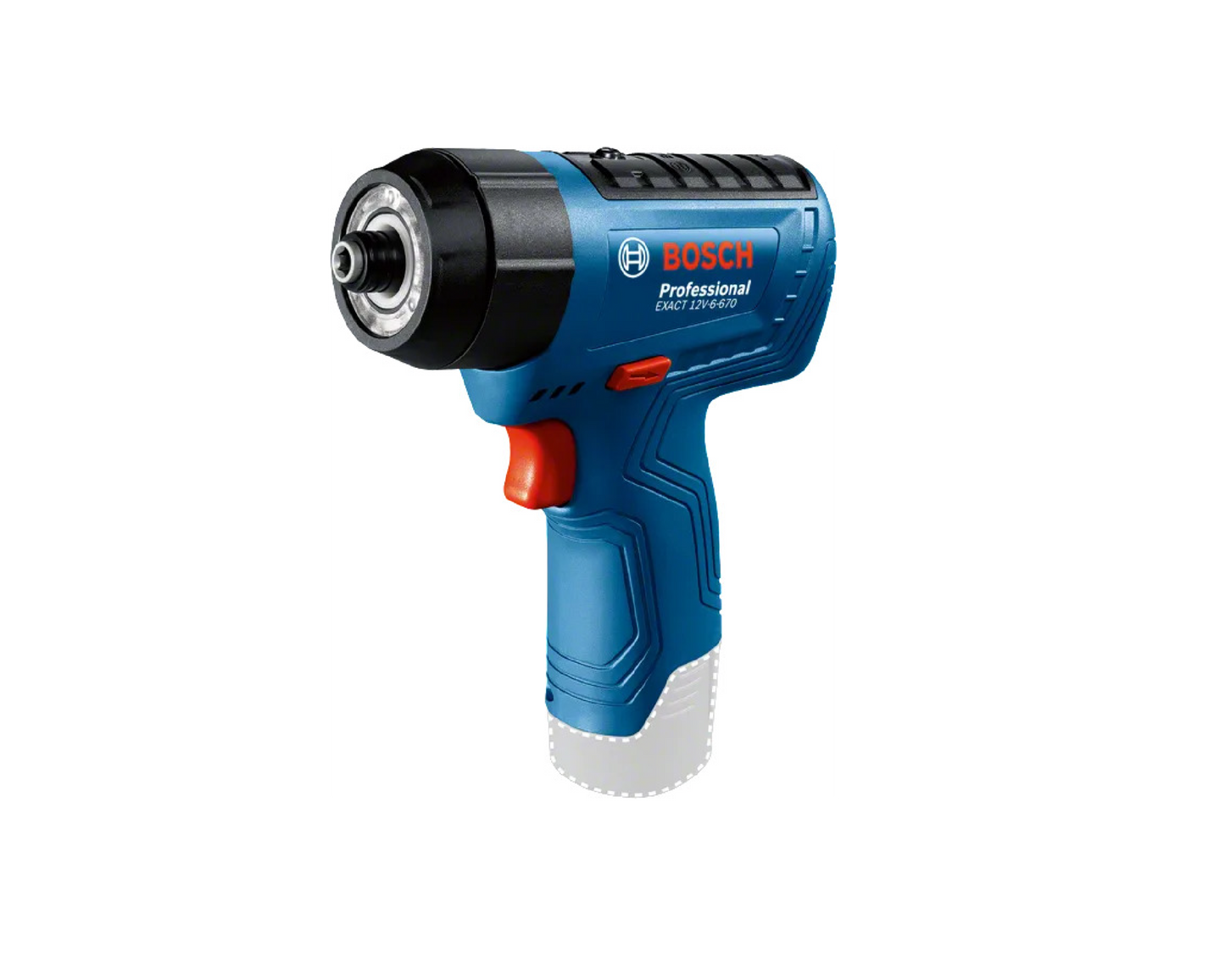

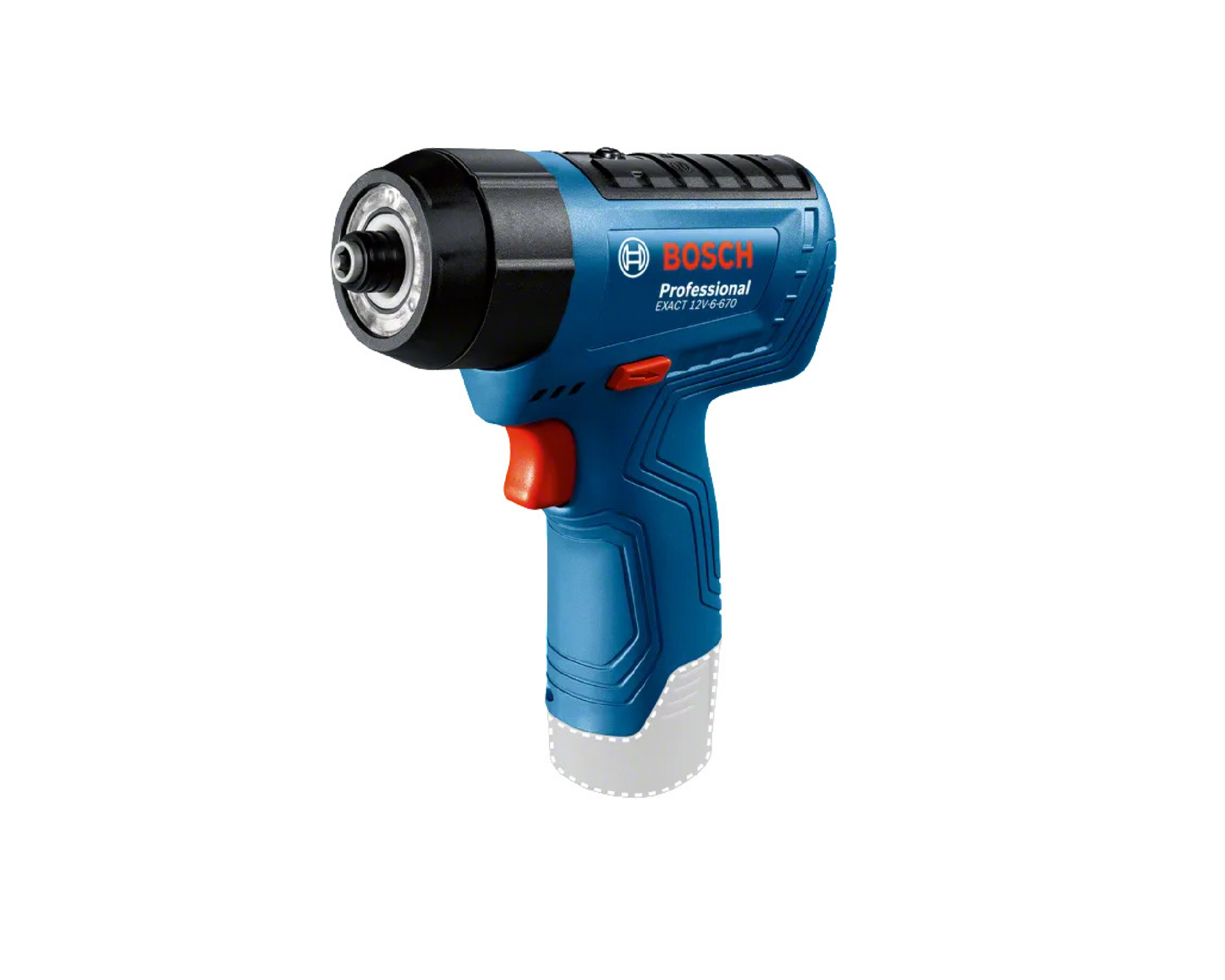

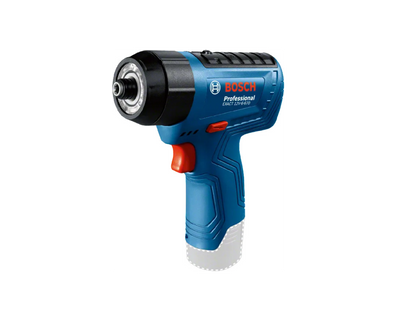

Bosch EXACT ION with Lithium-Ion Technology Cordless Screwdriver

Bosch EXACT ION with Lithium-Ion Technology – Industrial Assembly Screwdriver

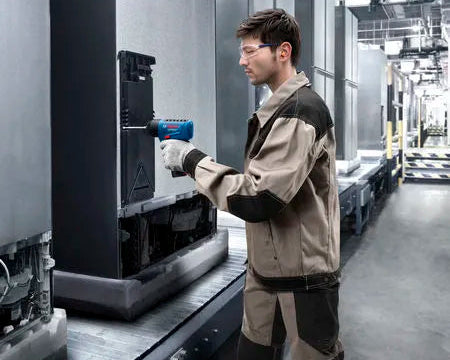

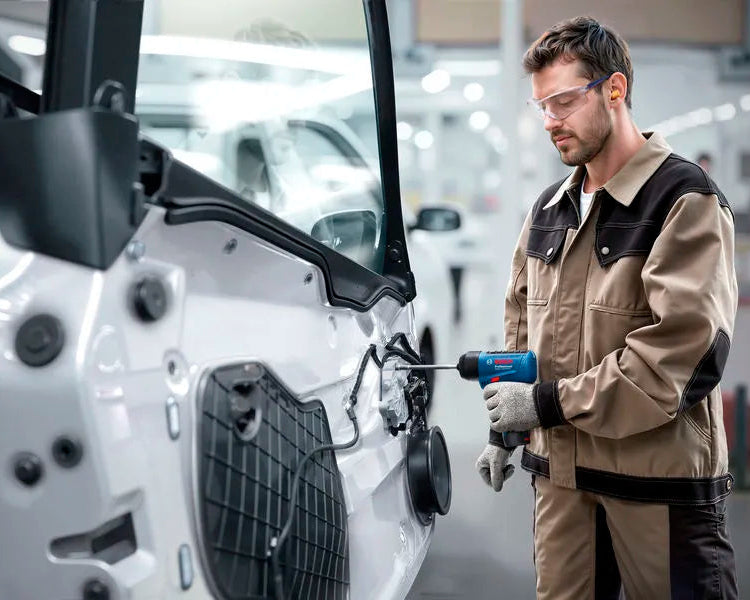

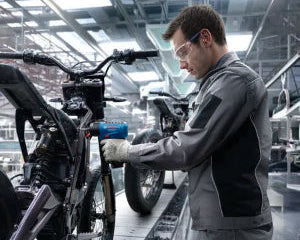

The Bosch EXACT ION with lithium-ion technology is an electronically controlled cordless screwdriver engineered for precision fastening in industrial assembly environments. Built on the Bosch 12V battery platform (GBA 12V) and equipped with a 1/4" quick-change chuck and shut-off clutch, it delivers consistent, repeatable torque on the production floor — from automotive and electronics assembly to general manufacturing lines. Machine capability is verified according to VDI 2647.

Available Options:

• EXACT 12V-2-670 – Torque range: 0.5–2 Nm | Speed: up to 670 rpm (Power Boost: up to 900 rpm). Optimized for lightweight fastening tasks with tight torque control in a narrow range — ideal for small fasteners and sensitive assemblies where over-torquing is a critical concern.
• EXACT 12V-6-670 – Torque range: 1.5–6 Nm | Speed: up to 670 rpm (Power Boost: up to 900 rpm). The most versatile model in the series, covering a broad torque range without sacrificing speed — well suited for mixed-fastener assembly lines handling varying joint types across a single shift.
• EXACT 12V-4-1100 – Torque range: 1-4 Nm | Speed: up to 1,100 rpm. Designed for high-speed, lower-torque applications where throughput is the priority — the go-to choice for fast-cycle assembly stations running lighter fasteners at volume.

Purchase Options:

• Tool Only – Screwdriver bare tool. Ideal for operations already equipped with Bosch 12V batteries and chargers.

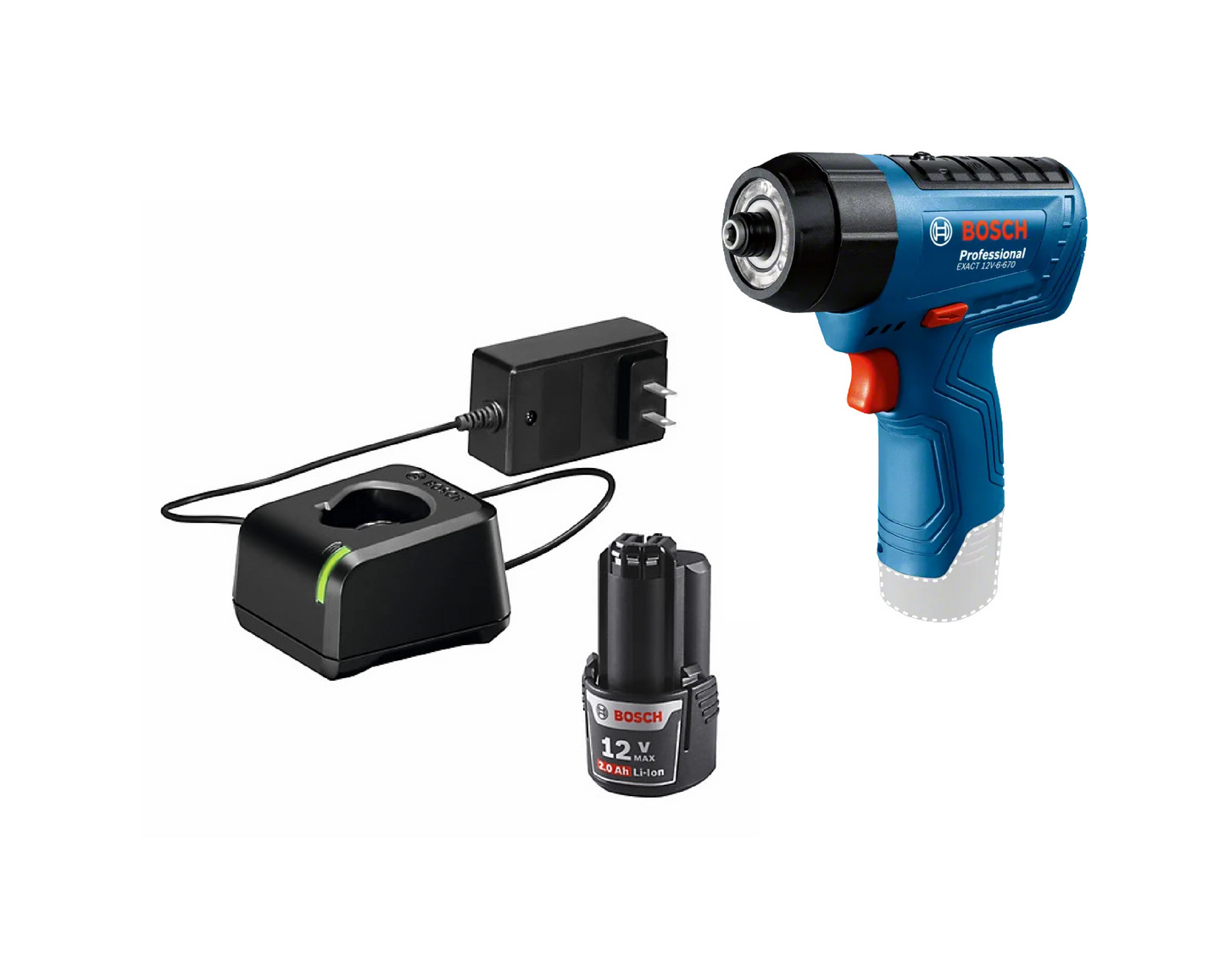

• Starter Kit – Includes screwdriver, GBA 12V battery, and charger. Ready to deploy out of the box.

Key Features:

• Electronically controlled torque with shut-off clutch for repeatable, accurate fastening
• Compatible with Bosch 12V battery platform (GBA 12V)
• 1/4" quick-change chuck for fast bit changes on the line
• Centre-grip design for operator comfort during extended use
• Available in three torque/speed configurations to match specific assembly requirements
• Machine capability tested according to VDI 2647

Downloads

To download the EXACT software, please click HERE

EXACT ION Series EXACT ION 12V Product Data Sheet - EXACT 12V-6-670 Product Data Sheet - EXACT 12V-4-1100 Product Data Sheet - EXACT 12V-2-670
